Hp

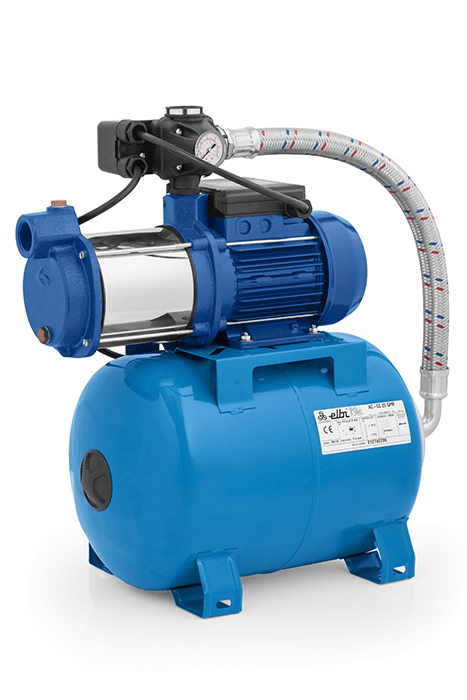

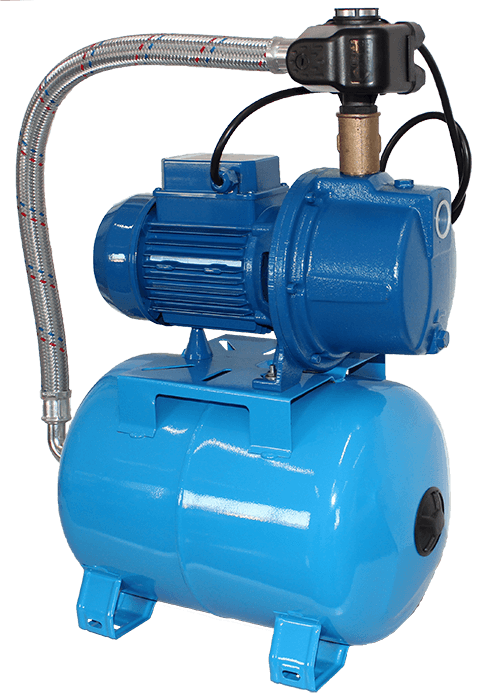

Hydropneumatic sets with CMH or JET pump

Characteristics

33 - 91m
Max. head

3.6 - 7.2m³/h
Max. flow

0.37 - 1.5kW
Motor power

G 1 F
Discharge size

Application

HP sets are suitable for use with clean water. These sets are widely used in water supply systems, washing systems, pressure systems, irrigation pumps, liquids transfer and are ready for operation.

Installation

The sets should be installed in an enclosed environment or sheltered from inclement weather.

Materials

One pump CMH or JET, one horizontal tank 24 l, one switch, one flexible tube1´´, one manometer, one 5-way connector, electric cable

Pumped liquid

Clean water.
Max. liquid temperature: 35°C.

Motor

Externally ventilated. Mechanical seal (carbon-graphite). Protection IP44. Class F insulation.

Features

Max. starts/hour: 30

Performance

Specification

Serie Kw Power Capacitor Passage DNC QMax HMax Palette
