Jet

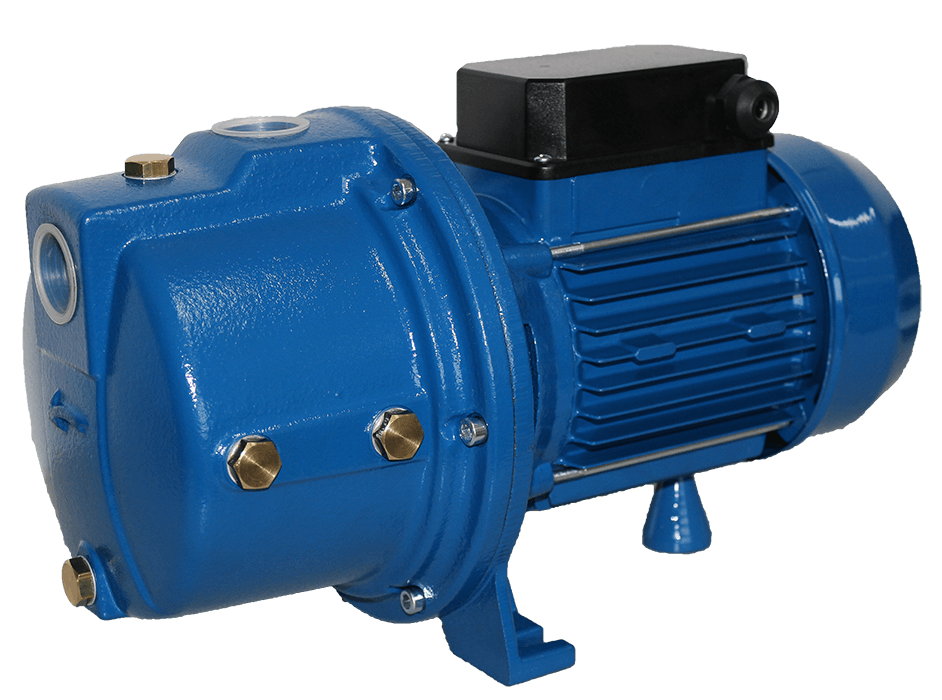

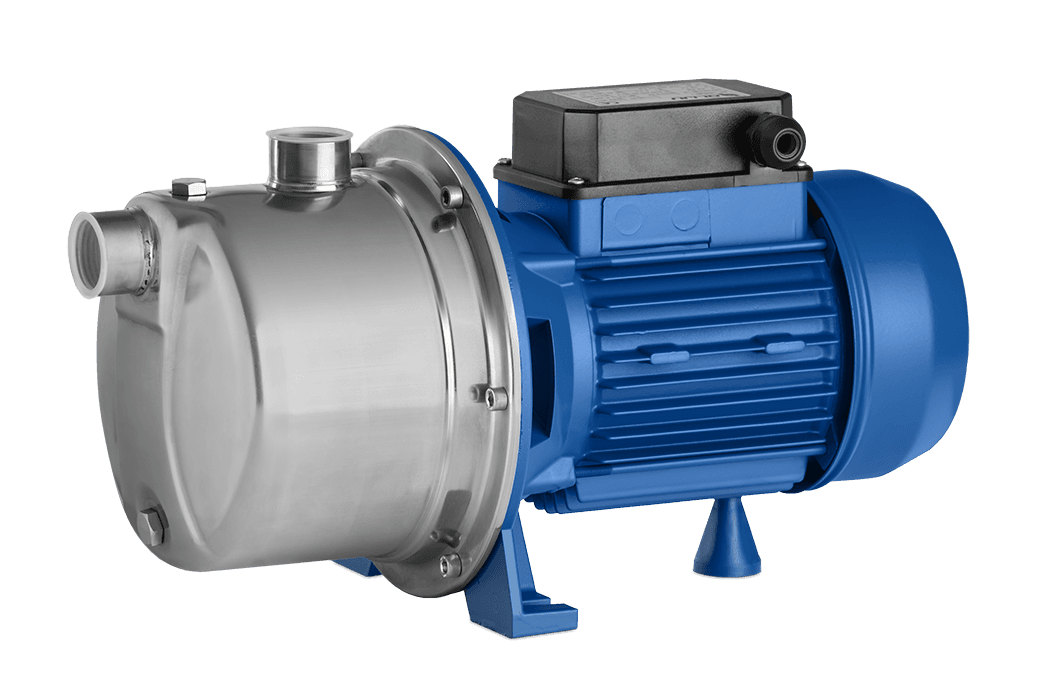

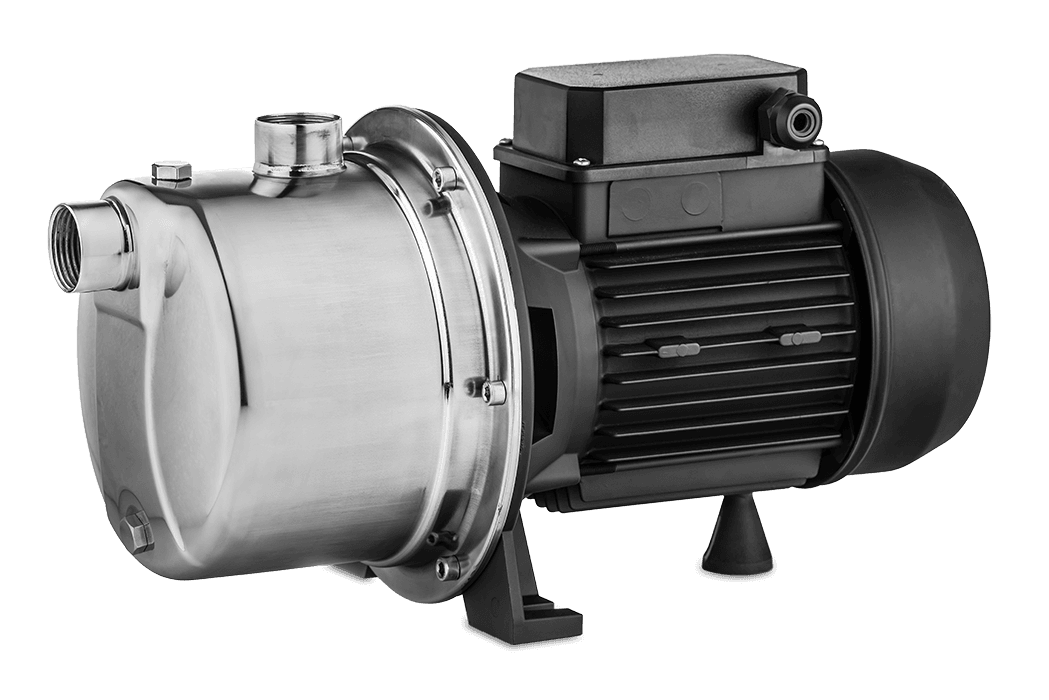

Self Priming Pump in Stainless Steel or Cast Iron

Characteristics

55m
Max. head

3.6m³/h
Max. flow

0.8kW
Motor power

1"
Discharge size

Application

The self-priming JET pumps are designed to pump water even in cases where air is present. They are reliability and they are easy to use. Recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.

Installation

The pump should be installed in an enclosed environment or sheltered from inclement weather.

Materials

Pump body in cast iron or stainless steel, pusher in cast iron, radial centrifugal turbine stainless steel (AISI 304), shaft in stainless steel (AISI 416), diffusor in noryl with fiber-glass.

Pumped liquid

Clean water.
Max. liquid temperature: 35°C.

Motor

Externally ventilated. Protection IP44. Class F insulation.

Features

Max. starts/hour: 30

Performance

Specification

Serie Kw Power Capacitor Passage DNC QMax HMax Palette
