Chs

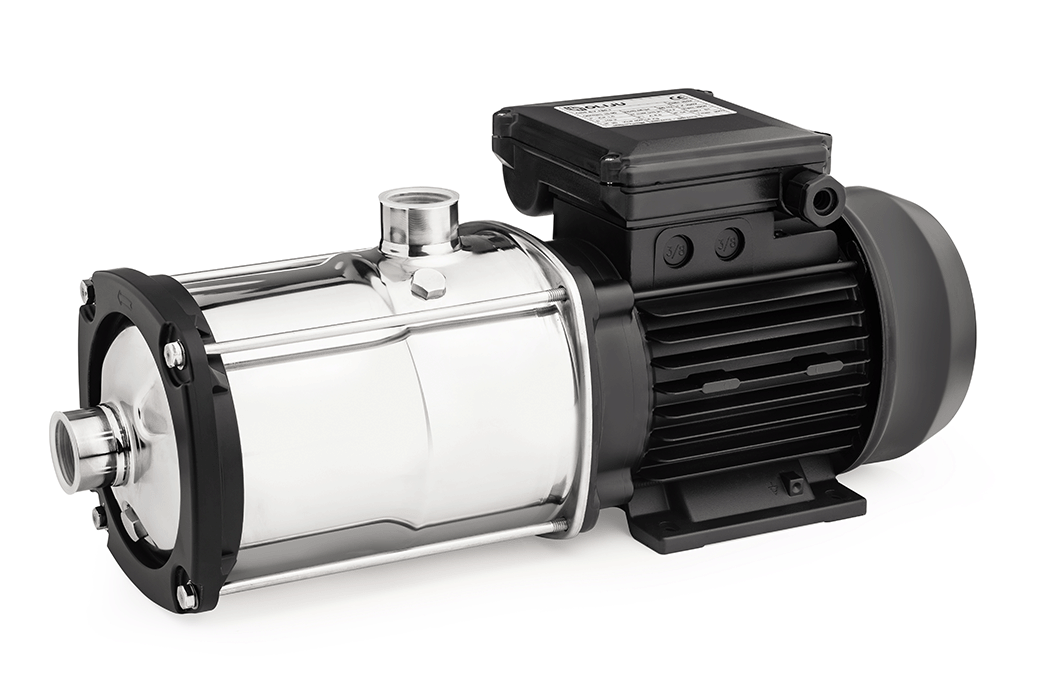

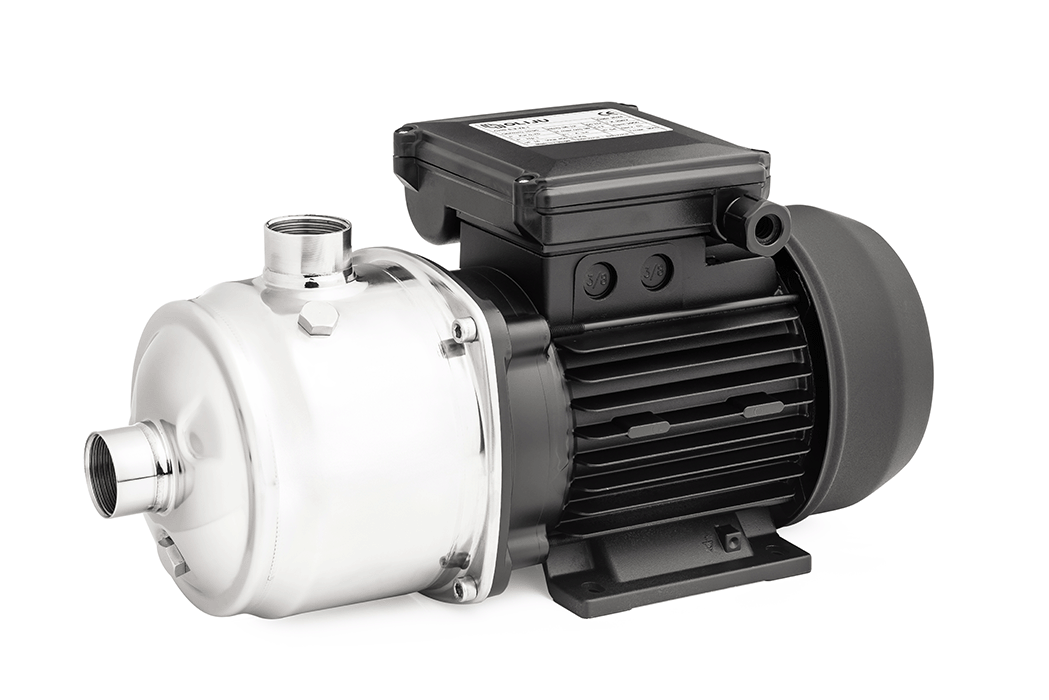

Horizontal Multistage Centrifugal Pumps

Characteristics

21 - 88m
Max. head

3.9 - 22m³/h
Max. flow

0.37 - 3kW
Motor power

G 1 - 1½ F
Discharge size

Application

CHS pumps are suitable for use with clean water. These pumps are widely used in domestic applications such as the distribution of water in combination with small and medium sized pressure tanks, and for the irrigation of gardens and orchards, etc.

Installation

The pump should be installed in an enclosed environment or sheltered from inclement weather.

Materials

Pump body and impeller in stainless steel (AISI304). Shaft in stainless steel (AISI 416). Diffusor in noryl with fiber-glass.

Pumped liquid

Clean water.
Max. liquid temperature: 35°C.

Motor

Externally ventilated. Mechanical seal (carbon-graphite). Protection IP44. Class F insulation.

Features

Max. starts/hour: 30

Performance

Specification

Serie Kw Power Capacitor Passage DNC QMax HMax Palette
